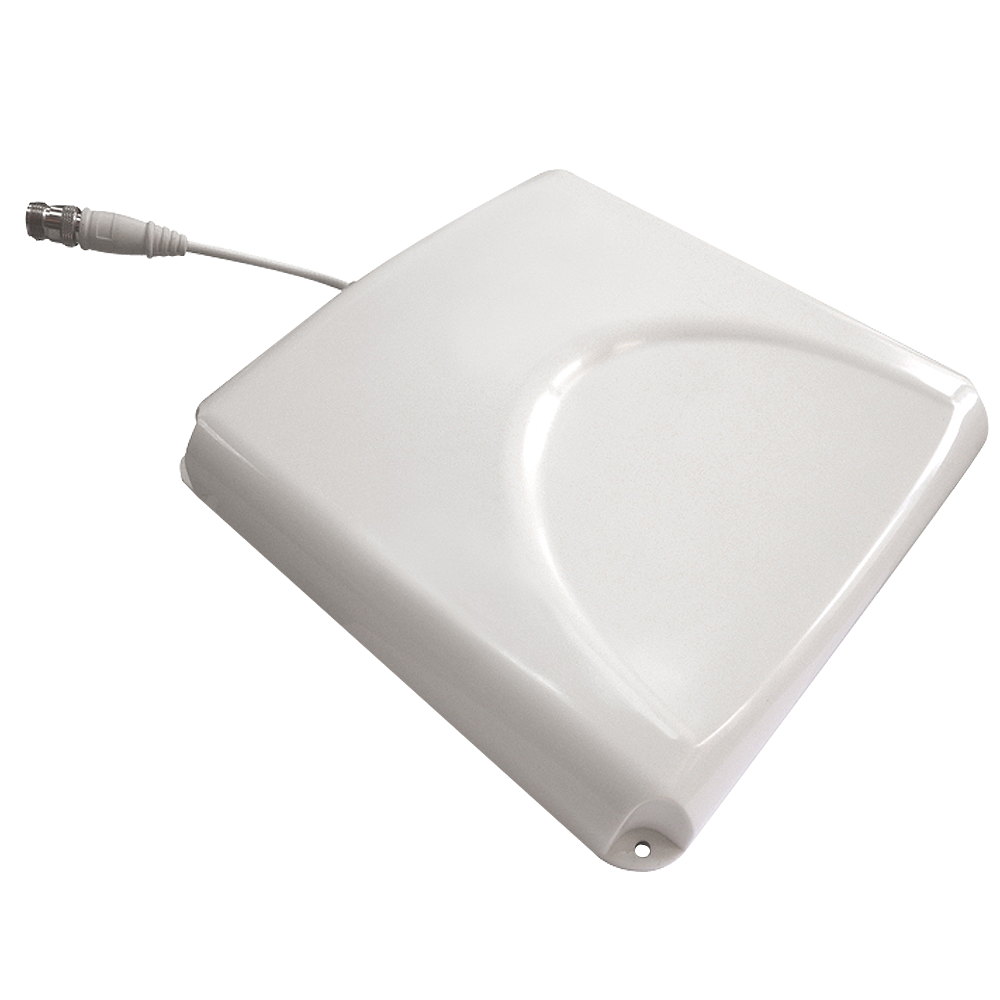

Outdoor Directional Antenna - 14dBi, N Type Connector
EA-OD14
  • Complying with IEEE 802.11g/b standard
  • Quick relocation to have best Wi-Fi signal
  • Receiving and transmitting up to 800m~1500m
  • Feasible to avoid potential "Dead spots"
  • Provides easy installation mounting kits



EA-OD14 14 dBi Directional Panel Antenna is designed to extend the coverage for an existing 802.11b/g wireless network. The directional design of the EA-OD14 dramatically increases wireless signal coverage in a specific direction allowing for improved data throughput at further distances.

This device can be connected to a wide range of  wireless 802.11b/g device, a variety of wireless PCI adapters, wireless routers, and access points on the market today to extend the range of your wireless network.



Gain 14dBi
Frequency Range 2400~2500MHz
VSWR 1.5 : 1 Max
Impedance 50Ohm
Power Handling 50W (cw)
Polarization Linear, Vertical
HPBW / Horizontal 30°
HPBW / Vertical 30°
FBR (Front to Back Ratio) 15dB
Lightning Protection DC ground
Survival Wind Speed 216km/h
Temperature -40~+80°C
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
