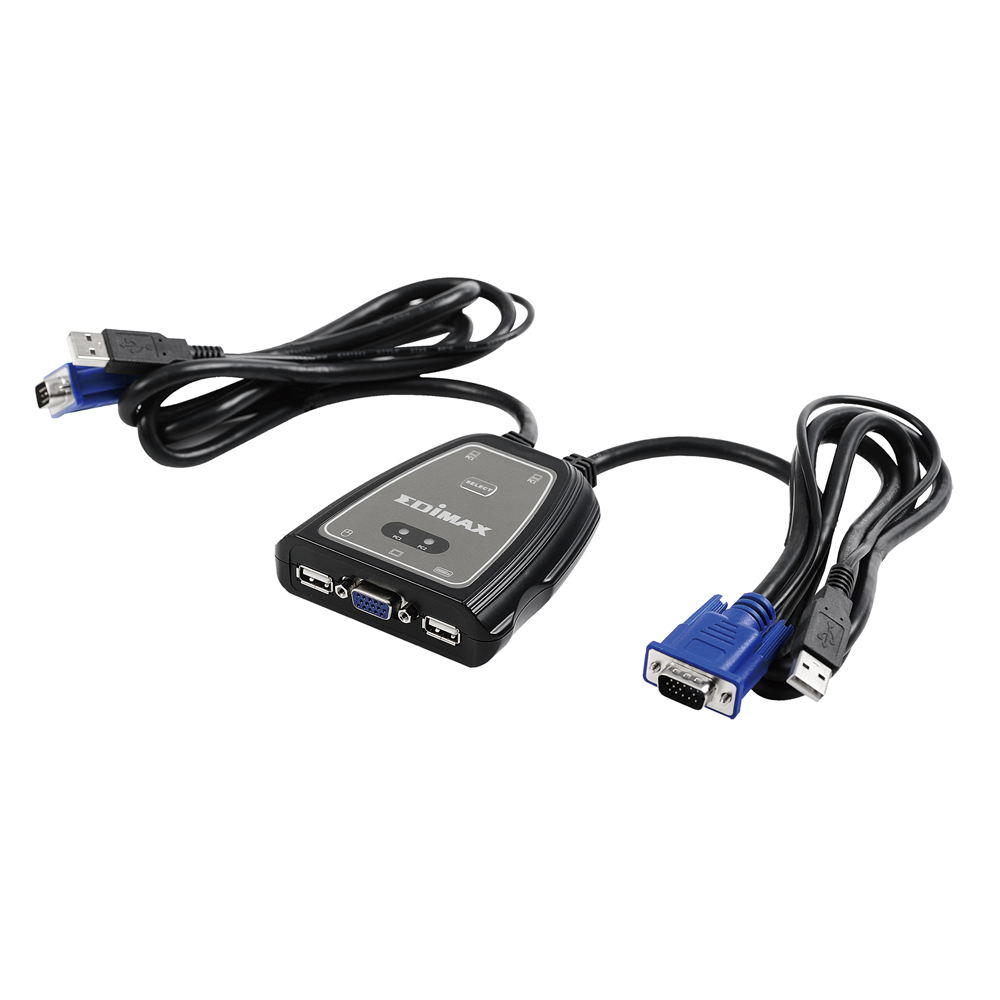

2 Ports USB KVM Switch with Cables
  • No Power Adapter or Software Required
  • High Video Resolution supports up to 1920 x 1440 pixels
  • Supports up to 250MHz Bandwidth
  • Supports Microsoft Intellimouse, Optical Mouse, Intellimouse explorer, Logitech Net Mouse etc.
  • Support DOS, Win3.X, Win95/98/98SE/ME/XP/2000/NT/Vista/7, Netware, Unix, Linux
  • Hot Plug - Add or Remove PCs for Maintenance Without Powering Down the KVM  switch or other PC
  • PC selection via Hot Keys and/or hardware Switch Button
  • Auto Scan Mode for Monitoring PCs
  • Keyboard Status restored when Switching PCs
  • LED Display for Easy Status Monitoring

What's a KVM switch anyway? Lets say you have two computers with, for instance, different Operating Systems (OS) on them: a KVM switch allows you to control both from one computer screen, keyboard and mouse. The Edimax EK-2U2C Slim Desktop KVM Switch is compact and designed specifically for individual and SOHO use.

The Edimax EK-2U2C has built-in USB ports for both the PC side and the console (KVM) side, allowing you to use a USB keyboard and mouse. It also includes 2 built-in cables to connect to your computers.  The Edimax EK-2U2C KVM switch supports hotkeys, so you can switch between computers by using the hardware switch on the device or by pressing the hotkeys on your keyboard. High resolution (1920 x 1440) support easily allows full HD quality. It also features push button and auto scan functions, and features complete keyboard and mouse emulation for a simultaneous PCs boot-up process. A “Hot Plug” feature lets you connect and disconnect to and from PCs without powering them down.

The Edimax EK-2U2C will save you money, space and equipment. You won't need additional power supply or software either; you can simply plug and play.



Schemat połączenia

Max. PC Connections 2
Display LED 2
PC Port Connector HD-15M x2, USB A type x2
Console Port Connector(Female) HD-15F x1, USB A type x2 for Keyboard & Mouse
PC Selection Hot Key / Switch button
Cable 2x 1.2 meters VGA HD-15F, USB A
VGA Resolution 1920 x 1440
Scan Intervals 5,10,15,20,25,30s
Housing Plastic
Bandwidth 250MHz
Humidity 0~90% (Non-Condensing)
Operation Temperature 0~40°C
Dimension 130 x 76 x 43mm
Weight 320g
