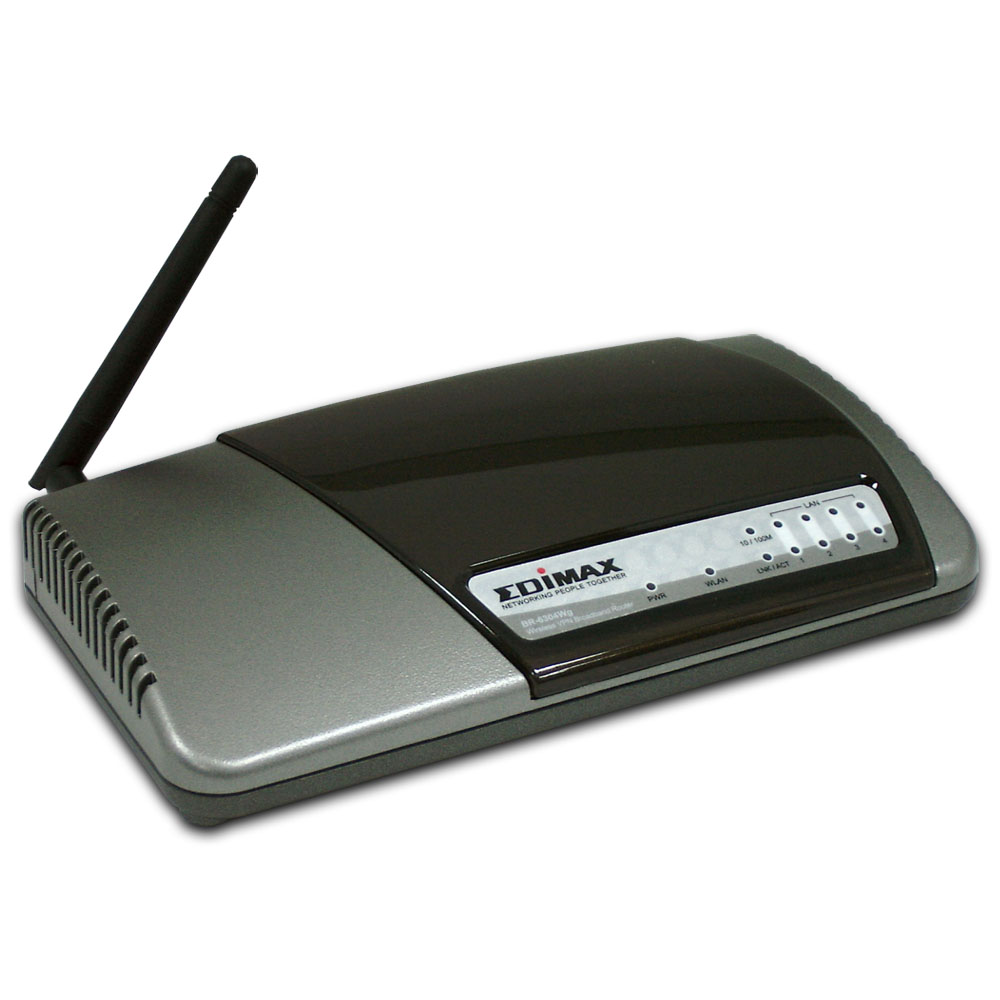

Wireless 802.11b/g VPN Broadband Router with 4 Ports Switch
BR-6304Wg
  • Shares Cable/DSL Broadband Connection
  • IPSec VPN gateway (ESP, IKE)
  • Supports IEEE802.11b/g with Data Rate up to 54Mbps
  • Supports 64/128 Bit WEP and  WPA2 Encryption
  • Supports Special Applications (Port Triggers)
  • Supports WDS and DDNS (DynDNS) function



lP Sharing
The NAT/NAPT function lets you share the ADSL line to all the Intranet users (support up to 253 users). It also provides virtual server and virtual DMZ functions to let your internal servers be accessed from the Internet.

54Mbps Wireless Access Point
The high speed 54Mbps IEEE 802.11g wireless LAN access point function can let your IEEE 802.11g and 802.11b wireless client devices access the Intranet through this router.

Supports Special Applications
The router can let you setup trigger ports of special applications, and let you utilize Internet services smoothly.

Anti-DoS SPI Firewall
The SPI (Stateful Packet Inspection) firewall can protect your Intranet PCs from illegal access and many kinds of DoS attacks from the Internet, and log all events in the first time. It also provides Internet access control function.

Virtual Server and DMZ
The virtual server and DMZ function let you setup your servers in the Intranet and still can provide services to the Internet users.

Web Configuration
You can configure the router through the friendly Web user interface with a browser.


Key Features

  •  NAT/NAPT IP Sharing / IPSec VPN gateway (ESP, IKE)
  •  Provides 3DES and AES encryption algorithms
  •  Provides MD5 and SHA1 authentication algorithms
  •  SPI Anti-DoS Firewall / Virtual Server/DMZ
  •  Supports WEP, WPA2 wireless LAN security
  •  Provides AP, AP client, Bridge, WDS, Universal repeater modes
  •  Supports Special Applications (Port Triggers)
  •  Supports DDNS (DynDNS, TZO)
  •  VPN Pass Through (IPSec/PPTP)
  •  Supports PPPoE/Static IP/PPTP/DHCP/L2TP types
  •  DHCP Server
  •  Web User Interface (Remote Configuration)
  •  System Status (Port Connectivity, DHCP MAC/IP Mapping)
  •  Security Log, firmware upgradeable





Specifications   BR-6304Wg
CPU Realtek RTL8186
RF Module Realtek RTL8225
Flash 4 MB NOR Flash
RAM 16MB SDRAM
WAN Ports One 10/100BaseT Fast Ethernet
LAN Ports  Four 10/100BaseT Fast Ethernet
Antenna RP-SMA Detachable Antenna
Power 12V 1A DC Linear Power Adaptor
Dimension 30(H)*187(W)*100(D) mm
Temperature 0~40°C
Humidity 0~90% (Non-Condensing)
Certification FCC Class B, CE Mark, C-Tick
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
* Specifikace a design se mohou změnit bez předchozího upozornění.
