EW-7718Un complies with 802.11n draft 2.0, the next generation wireless standard. With the advanced MIMO technology, it can support the data transmission rate 6 times more (up to 300Mbps) and the coverage 3 times more than IEEE 802.11b/g devices. EW-7718Un stable wireless connection and high bandwidth enable you enjoying the network applications without any interruption
Wireless 802.11n devices with data rate up to 300Mbps
EW-7718Un is complied with wireless 802.11b/g/n standards with latest 11n MIMO technology to increase the wireless speed up to 6 times faster and extends the range 4 times further for reducing "dead spots" within the wireless coverage area. The transmission data rate when connecting with wireless 802.11n devices is up to 300Mbps, which makes signal travel farther and maintain wireless connections much reliable than standard wireless 802.11b/g network.
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. This wireless USB adapter supports software WPS-compatible configuration. When both ends of the wireless connection use Edimax wireless solution with WPS, it will automatically configure the wireless network with robust WPA data encryption and authentication.
Supports multi-language EZmax setup wizard
The included EZmax setup wizard with 16 languages and friendly UI will walk you through configuring EW-7718Un to your wireless network.

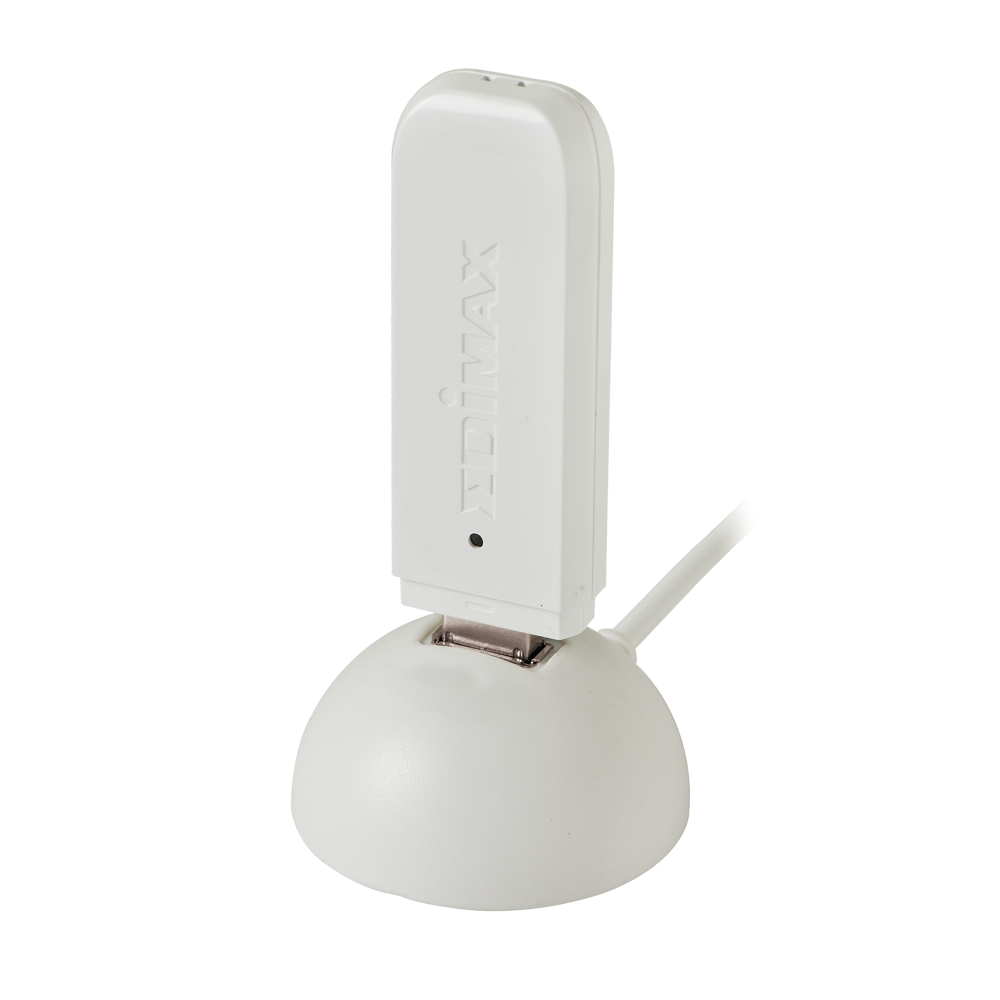

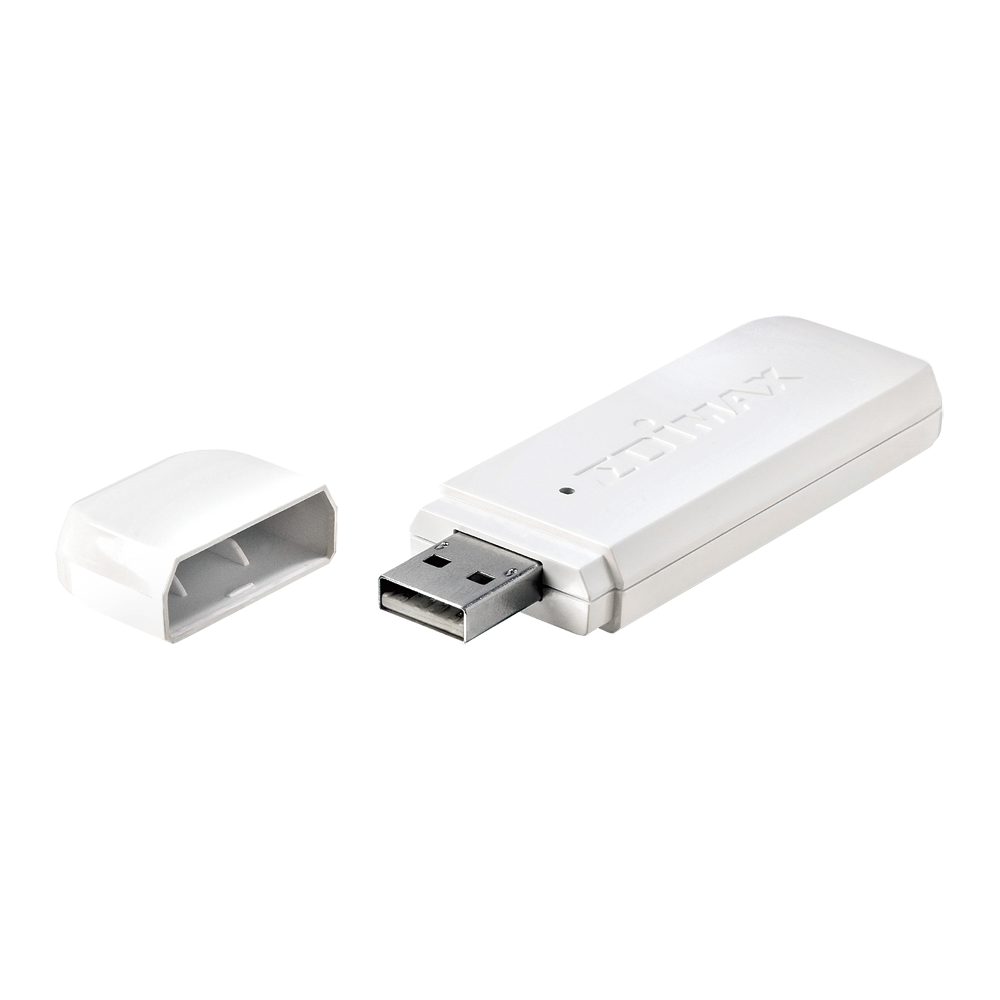

Portable and compact design
The compact design of EW-7718Un is convenient to carry for all mobile users.
FEATURES
Complies with 802.11n Draft 2.0, 802.11g and 802.11b standards.
Provides further coverage, less dead spot and higher throughput(up to 300Mbps) with MIMO technology.
Supports WMM, WMM-PS.
Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES with IEEE 802.1x) for high security level.
Supports operating system: Windows 2000/XP/XP64/Vista.
Supports WPS configuration.
Supports USB 2.0/1.1 interface.
Portable and mini-size design.
APPLICATION DIAGRAM
Connect the EW-7718Un wireless adapter to your computer.
Setup the Internet connection by running the multi-language EZmax setup wizard.
Connects to 802.11b/g/n wireless access point or broadband router.
2.4000~2.4835GHz Industrial Scientific Medical Band)
DATA RATE
INSTALLATION
LED
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-7 (up to 72Mbps)
11n (40MHz): MCS0-7 (up to 150Mbps)
Multi-language EZmax Setup Wizard
Link/Activity
SECURITY
DIMENSIONS
HUMIDITY & TEMPERATURE
64/128-bit WEP Data Encryption
WPA (TKIP with IEEE 802.1x)
WPA2 (AES with IEEE 802.1x)
87 (L) x 27(W) x 10(H) mm
Max. 95% (Non Condensing)
32~131°F (0 ~55°C)
SYSTEM REQUIREMENTS
TRANSMIT POWER
CERTIFICATIONS
Windows 2000/XP/ Vista / 7 / 8 Edition
16dBm ± 2dBm
CE, FCC
*Maximální výkon, přenosové rychlosti a pokrytí záleží na síťových podmínkách a faktorech životnícho prostředí.
*
Specifikace a design se mohou změnit bez předchozího upozornění.
