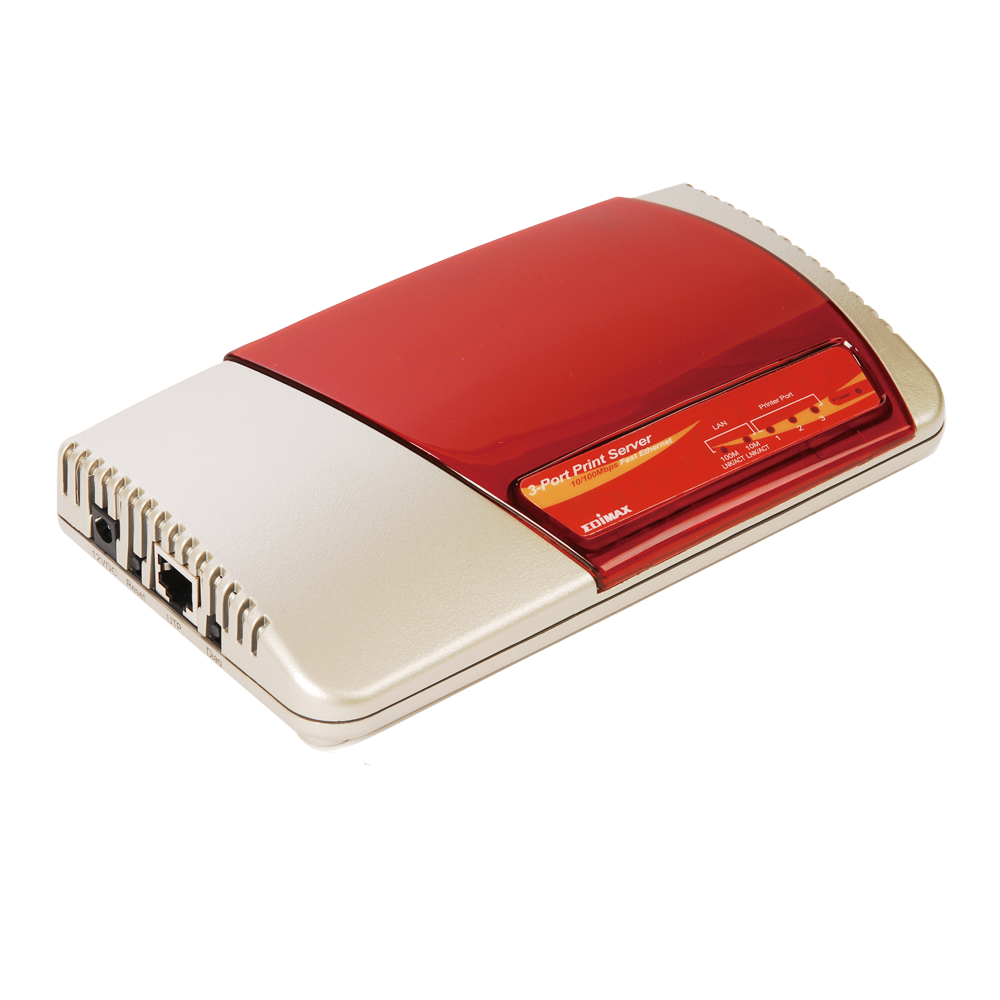

Fast Ethernet 3 Parallel-ported Print Server
PS-3103P
  • Complies with IEEE 802.3/802.3u standards
  • Includes Setup Wizard
  • Shares three (3) Parallel printers* with network users
  • Supports TCP/IP, IPX/SPX, NetBEUI and Apple Talk protocols
  • Supports LPR, IPP, SMB/TCP and RAW printing protocols
  • Supports DHCP Server and Client protocols
  • Supports Auto MDI/MDI-X
  • Compatible with Windows 2000/XP/Vista, MAC OS 10.4.x and above




Broad Selection of Printing Methods
The PS-3103P print server supports a wide selection of printing protocols such as LPR, IPP, SMB/TCP and RAW printing. They can also work with different network protocols like, TCP/IP, IPX/SPX, NetBEUI, and Apple Talk. This gives you a variety of printing methods to choose from based on your requirements.

Fault-Tolerant Firmware Upgrades
Now, users need not worry about errors occurring in the midst of an upgrade that may subsequently stop its operations. The PS-3103P print server incorporates a fault-tolerant upgrade function that permits re-upgrading of the device should problems occur during the initial or previous upgrade session.

Double-purposed DHCP Server/Client
The printer server can act as a DHCP server that lets your LAN clients to automatically obtain an IP address. It can also act as a DHCP client allowing easy integration to your existing network.

User-friendly Setup CD Wizard and Driver*
To facilitate connection to your printer the PS-3103P includes a user-friendly EZmax setup wizard. Its easy-to-use windows installation wizard simplifies and enhances driver installation for immediate use of the device. An add-on feature allows you to conveniently configure the GDI print server from any network client that support web-browsing.

* The Setup CD Wizard only supports Edimax print servers.



•  Complies with IEEE 802.3/802.3u standards
•  Includes Setup Wizard
•  Shares three (3) Parallel printers* with network users
•  Supports TCP/IP, IPX/SPX, NetBEUI and Apple Talk protocols
•  Supports LPR, IPP, SMB/TCP and RAW printing protocols
•  Supports DHCP Server and Client protocols
•  Supports Auto MDI/MDI-X
•  Compatible with Windows 2000/XP/Vista, MAC OS 10.4.x and above



STANDARDS & HARDWARE INTERFACE

CPU / MEMORY

POWER ADAPTER

•  IEEE802.3 / 802.3u
•  Three parallel ports
•  One 10/100Mbps LAN port
•  Reset button
•  RDC 1610 CPU
•  512KB NOR Flash
•  2MB SDRAM

•  12VDC / 1.25A

INSTALLATION & MANAGEMENT KITS

LED Indicators

HUMIDITY & TEMPERATURE

•  Setup Wizard
•  Admin Utility included
•  Web Management
•  Firmware upgrade utility
•  LAN 10M/100M Link/Activity
•  Printer port 1/2/3
•  Power
•  10~90% (Non-condensing)
•  10~40°C

SYSTEM REQUIREMENTS

DIMENSIONS

CERTIFICATIONS

•  CPU : Pentium III 1G above or similar
•  Memory size : 256MB RAM
•  One CD-ROM drive
•  Hard Disk : At least 100MB available space
•  Parallel Printer
•  Fast Ethernet network

•  187 (W) x 30 (H) x 100 (D) mm

•  CE, FCC

TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS





* Please check the list of compatible printers before you make your purchase.
